When it comes to designing a durable, stylish, and functional aluminum case, the choice of aluminum frame plays a critical role. The frame not only determines the structural integrity of the case but also impacts its aesthetic appeal, portability, and safety. Whether you're sourcing aluminum cases for tools, cosmetics, instruments, or custom storage, understanding the different aluminum case frame types can help you make an informed decision. In this guide, I’ll walk you through the most common aluminum frames used in aluminum cases today: L shape, R shape, K shape, and combined shape. Each has its own strengths, use cases, and visual characteristics.

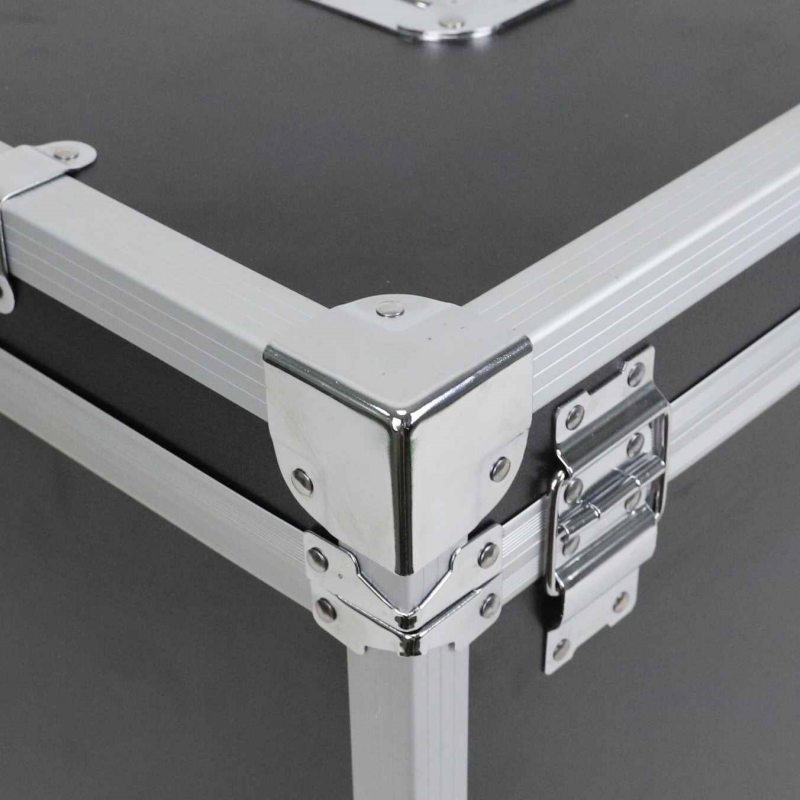

1. L Shape Aluminum Frame: The Classic Standard
The L shape aluminum frame is the backbone of many standard aluminum cases. It features a 90-degree right-angle structure, offering exceptional support and simplicity.
Key Features:
- Straight-edged, rigid structure
- Designed with multiple ridges to increase hardness
- Efficient use of material, reducing waste and cost
- Simple to manufacture and install
Benefits:
- Highly cost-effective
- Easy to assemble
- Strong load-bearing capability
- Long-lasting and practical
Common Uses:
- Tool cases
- Storage boxes
- Instrument cases
If you're looking for a cost-friendly and reliable solution, the L shape frame is a great choice.

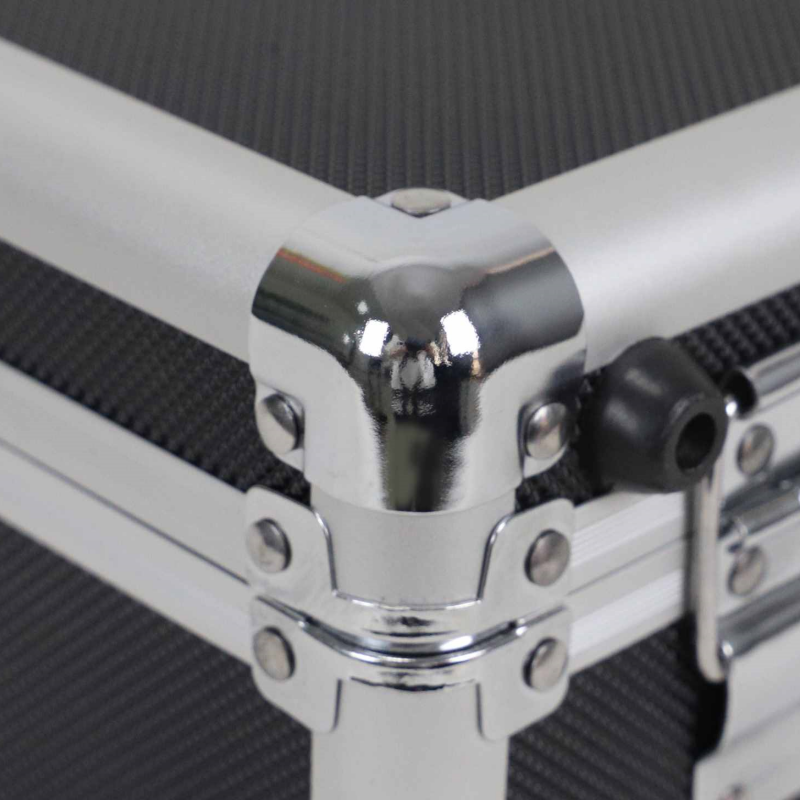

2. R Shape Aluminum Frame: For Elegance and Safety
The R shape aluminum frame adds a touch of refinement to traditional aluminum cases. Its signature rounded corners improve safety and enhance visual appeal.
Key Features:
- Double-layer aluminum strip
- Smooth, rounded edges
- Sleek and modern appearance
Benefits:
- Reduces sharp corners for user safety
- Enhances case aesthetics
- Provides better impact resistance than standard L shape
- Strong panel-holding capability
Common Uses:
- Beauty cases
- First-aid kits
- Display or sample cases
- Medical equipment boxes
The R shape aluminum frame is perfect for industries where presentation, safety, and style are important.

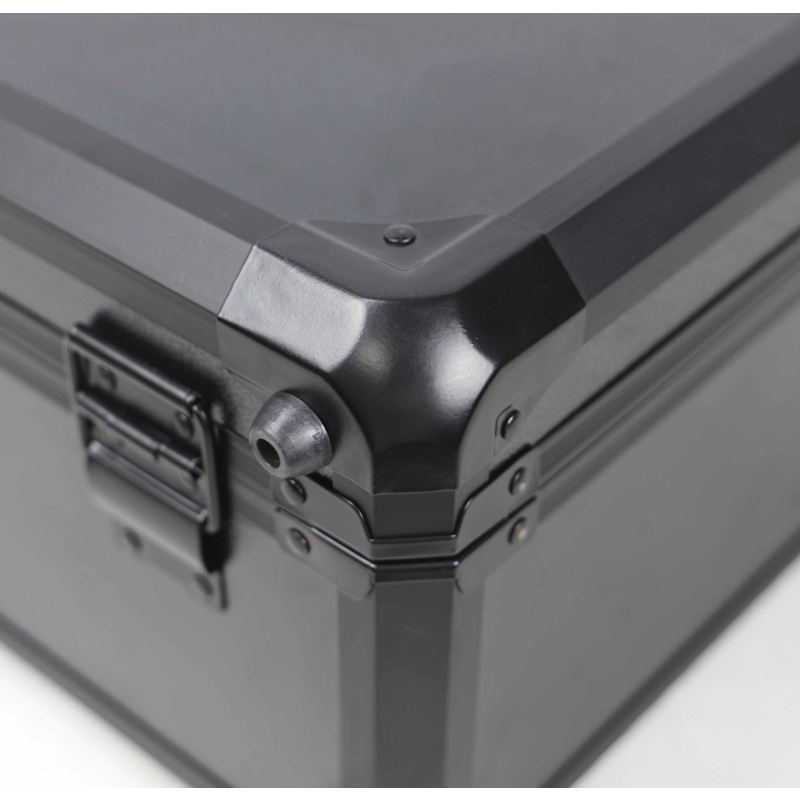

3. K Shape Aluminum Frame: Heavy-Duty and Industrial
Designed for performance under pressure, the K shape aluminum frame is built with a distinctive cross-section that mimics the letter “K”.
Key Features:
- Double-layer aluminum strip
- Reinforced edges and deep ridges
- Bold, industrial look
Benefits:
- Excellent for high-load and heavy-duty cases
- Superior impact resistance
- Compressional strength and durability
- Enhances the overall structural stability
Common Uses:
- Precision equipment cases
- Technical toolboxes
- Transport-grade aluminum cases
If your case needs to withstand rough handling or heavy gear, the K shape aluminum frame is a top-tier choice.

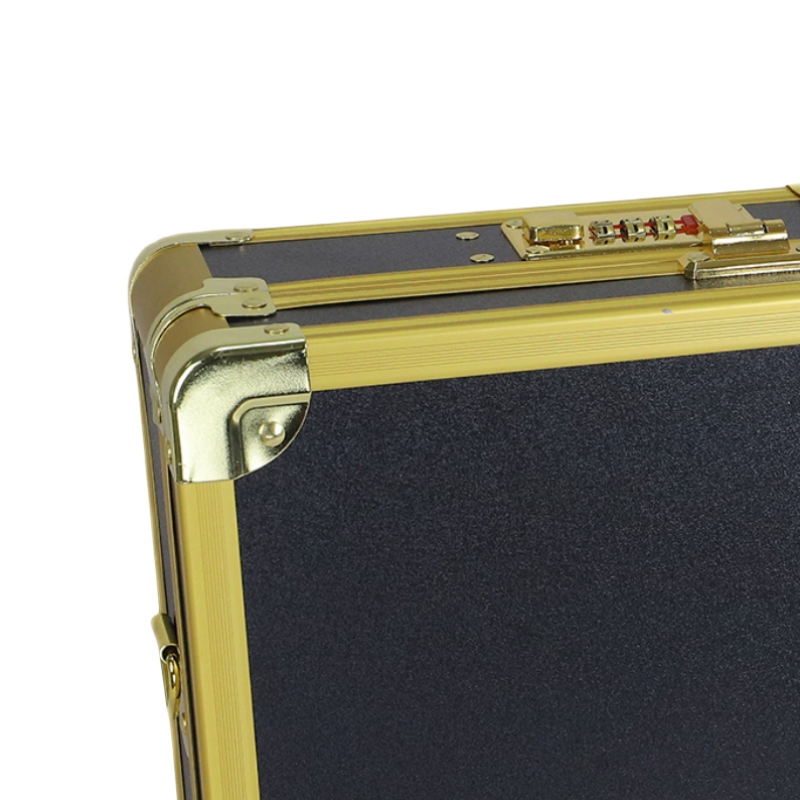

4. Combined Shape Aluminum Frame: Balance of Strength and Beauty
The combined shape frame is a hybrid design that merges the L shape’s structural rigidity with the R shape’s smoothness and safety.
Key Features:
- Right-angle frame combined with rounded corner protectors
- Visually balanced and modern appearance
- Offers both functional durability and stylish aesthetics
Benefits:
- Excellent shock absorption
- Looks more premium and high-end
- Compatible with a wide variety of case sizes and types
- Great for customization
Common Uses:
- Luxury presentation cases
- High-end custom aluminum cases
- Multifunctional tool and sample cases
The combined shape is ideal for customers looking for a versatile, strong, and visually appealing aluminum case frame.
5. Comparison Table of Aluminum Frame Types
| Frame Type | Structure Style | Safety Level | Strength | Best For |
| L Shape | Right Angle | Moderate | High | Standard cases |
| R Shape | Rounded Corners | High | High | Display & beauty cases |
| K Shape | Reinforced Angle | Moderate | Very High | Industrial, transport cases |
| Combined | Hybrid | Very High | High | Custom, luxury cases |
Conclusion
Choosing the right aluminum frame can make all the difference in how your aluminum case performs and looks. Whether you need strength, elegance, or both, there’s a frame design to suit your project.
Here’s a quick recap:
- L shape = reliable, cost-effective, and widely used
- R shape = smooth, elegant, and user-safe
- K shape = rugged, industrial, and heavy-duty
- Combined shape = versatile, balanced, and premium-looking
Next time you’re planning a new aluminum case project, consider the frame style carefully—it’s more than just a corner; it’s the backbone of your case.
With over 16 years of experience in aluminum case production, Lucky Case offers a wide range of frame options—including L, R, K, and combined shapes—to suit everything from toolboxes and medical kits to luxury presentation cases. Whether you're looking for standard models or fully customized solutions, their in-house design and R&D team can bring your vision to life. From large OEM orders to niche custom projects, you can count on Lucky Case for aluminum cases that are built to last and designed to impress.
