A custom aluminum case should be designed around the equipment it needs to protect, not simply around the appearance of the case itself. For B2B buyers, the right design needs to balance protection, durability, weight, portability, functionality, and manufacturing cost.
A case that looks suitable from the outside may still provide inadequate protection if the internal dimensions are wrong, the foam is poorly selected, or the hardware cannot support the weight of the equipment. Likewise, adding unnecessary structural features can increase cost and weight without providing meaningful benefits.
Before requesting a quotation or approving a design, buyers should therefore evaluate several key factors. The following six considerations can help you develop a more practical and reliable custom aluminum case for your equipment, instruments, or products.
1. Start With the Equipment Dimensions
The first step in designing an aluminum case is determining what needs to go inside it. In most custom projects, the case dimensions are based on the size of the equipment rather than selected from a standard case size.
Provide the equipment's length, width, and height to the manufacturer. If the equipment has handles, connectors, cables, switches, protruding components, or other irregular features, these should also be considered when determining the required internal space.
The relationship between equipment size and case size is particularly important when foam protection is required. The case must have enough internal space for the equipment and protective material without allowing excessive movement.
B2B buyers do not necessarily need to calculate the final case dimensions themselves. When the equipment dimensions are available, an experienced manufacturer can help determine an appropriate case size based on the required foam, internal structure, and hardware.
It is also important to distinguish between internal and external dimensions. External dimensions determine the overall footprint of the case and can affect transportation and storage, while internal dimensions determine whether the equipment and protective components will fit correctly.
2. Match the Foam to the Protection Requirement
The internal protection system is one of the most important parts of an equipment case. The purpose of foam is not simply to fill empty space; it should help keep the equipment positioned securely and reduce the effects of impact and movement during handling and transportation.

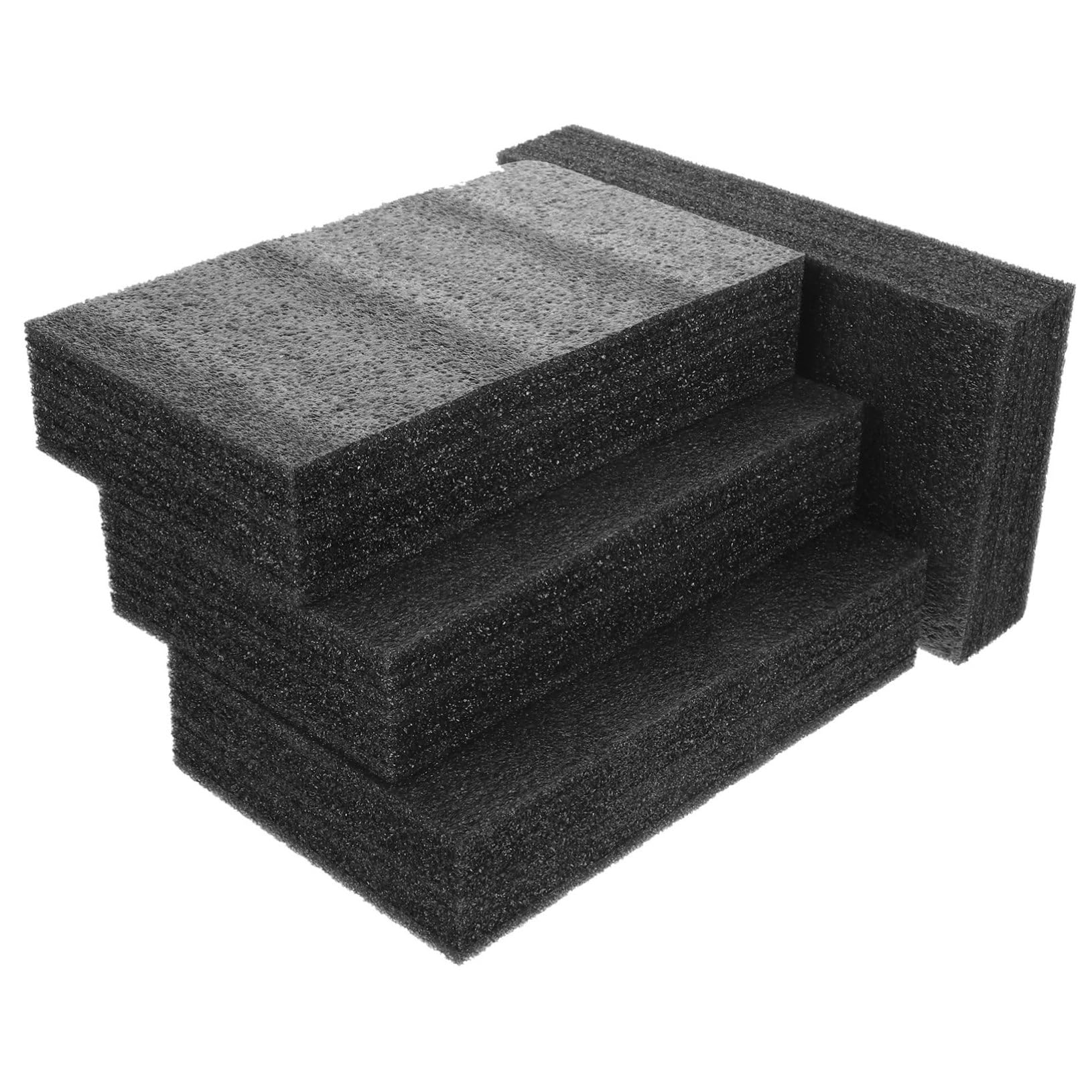

Common foam options include EVA, PE, and EPE, but they are not interchangeable for every application.

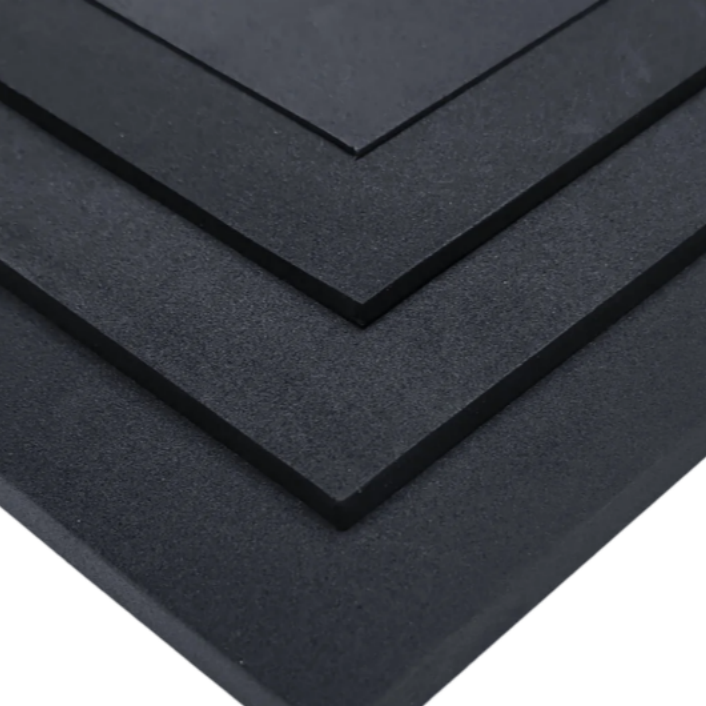

EVA foam is commonly used for equipment and instruments where a shaped protective insert is required. It can be cut according to the equipment's shape, creating a more precise fit.

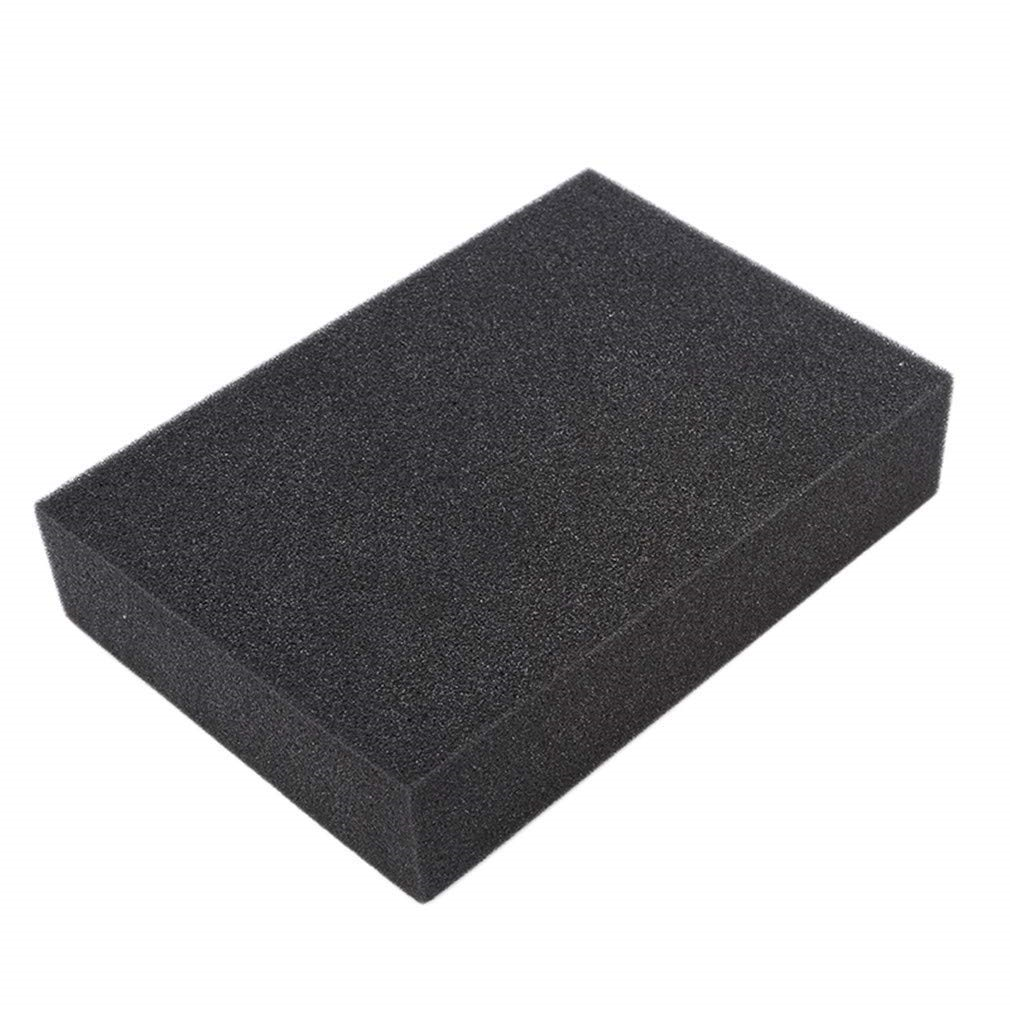

PE foam can be used for protecting fragile products and items such as glassware. Its application should be determined according to the characteristics of the product and the required level of cushioning.
Pick & Pluck foam is a lightweight, resilient, and cost-effective cushioning material widely used for both protective packaging and surface protection. It features a closed-cell structure that provides excellent shock absorption, moisture resistance, and flexibility.
The foam thickness and internal configuration should also be considered together with the equipment's dimensions and protection requirements. Simply choosing thicker foam does not automatically result in better protection if the equipment is not properly supported.
3. Select the Aluminum Frame According to Structural Requirements
The aluminum frame provides the basic structural framework of the case. Different frame profiles can affect the case's appearance, structural characteristics, and manufacturing cost.
Common frame options include L-shaped, R-shaped, K-shaped, and combined aluminum frames.

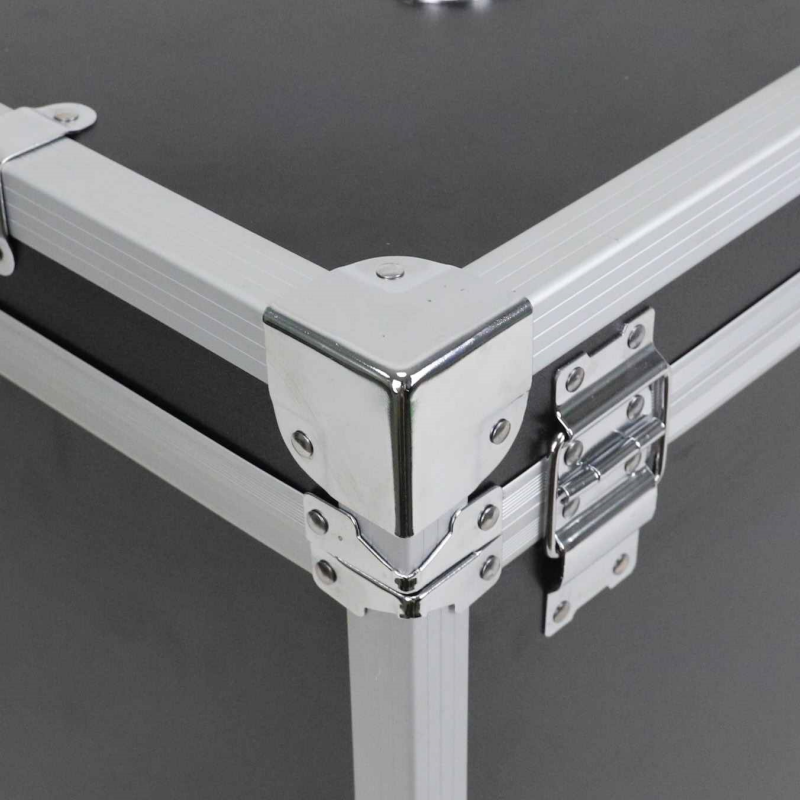

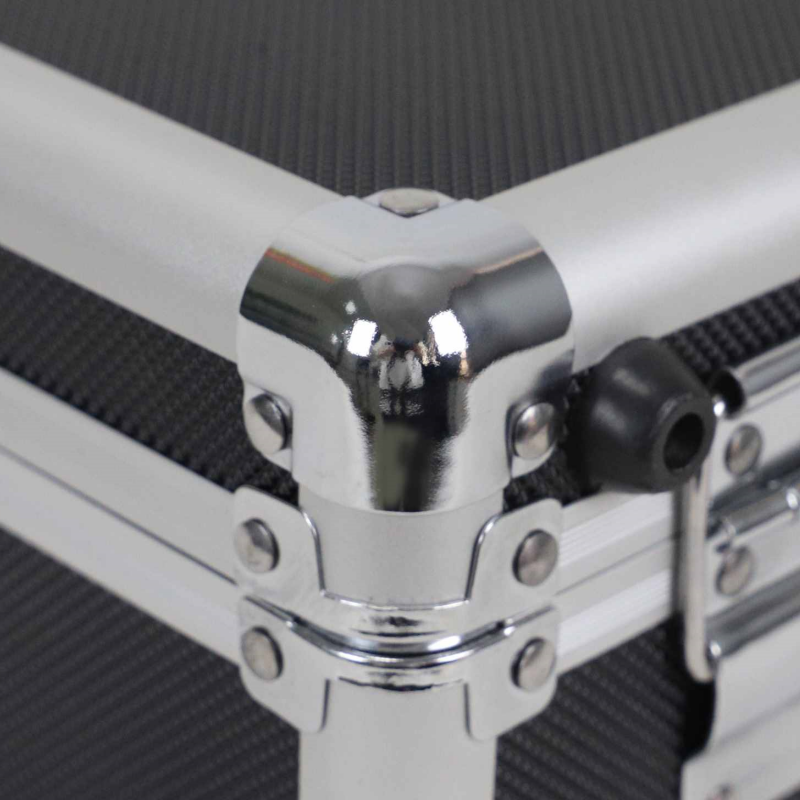

An L-shaped frame is a practical option for many standard case applications. An R-shaped frame can provide a different edge appearance and is suitable when rounded edges are preferred.

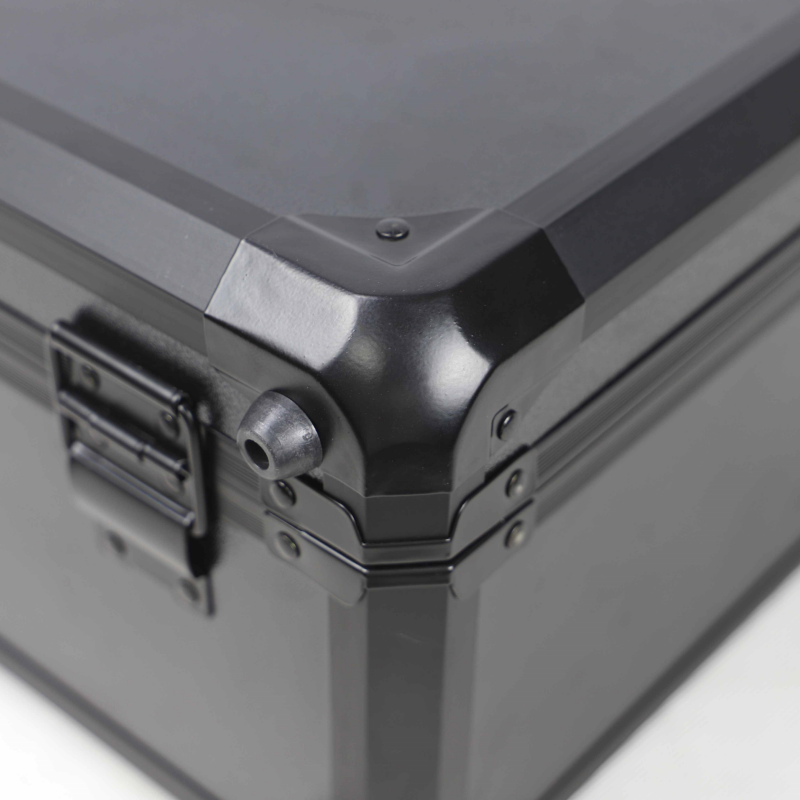

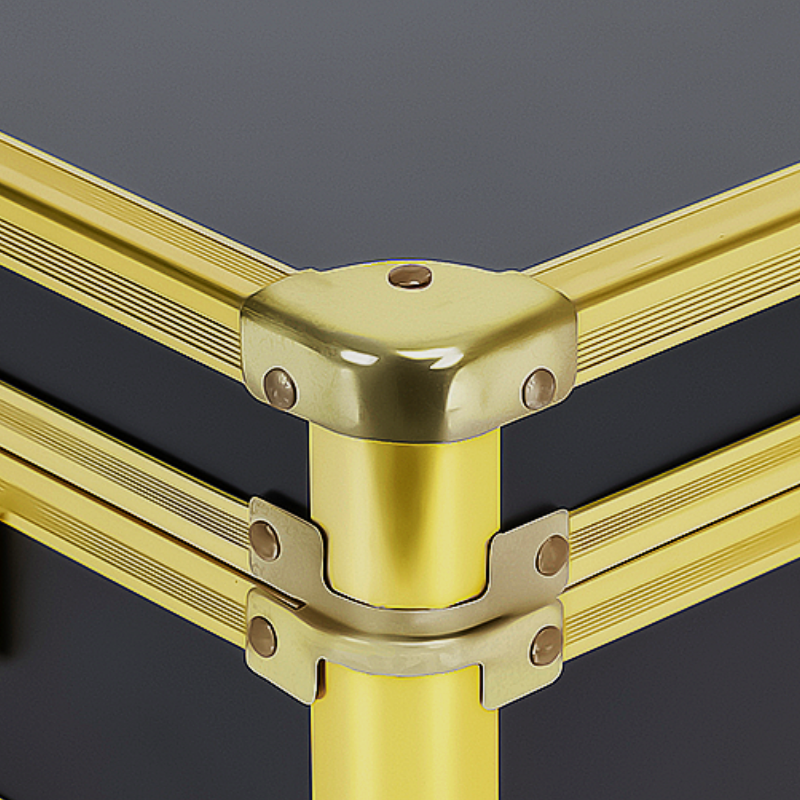

K-shaped frames are designed for applications where stronger structural support is required, while combined frames can be used when a project requires a combination of structural characteristics and appearance.
K-shaped and combined frames generally cost slightly more than L-shaped and R-shaped frames. Therefore, frame selection should be based on the actual requirements of the case rather than automatically choosing the most complex option.
For heavier equipment or cases that will experience frequent transportation and handling, structural requirements should be evaluated together with the panel material, hardware, and internal support system.
4. Choose the Panel Material Based on the Application
The panel is another major design element of an aluminum case. Different panel materials provide different combinations of appearance, weight, rigidity, durability, and cost.
Common options include ABS, acrylic, aluminum sheet, leather, and melamine panels.
ABS panels are suitable for many general-purpose cases where practical protection and cost efficiency are important.
Acrylic panels are particularly useful when visibility or product presentation is required. For example, acrylic can be used for display-oriented cases where the contents need to remain visible. A typical acrylic panel specification is 3 mm.
Aluminum panels can provide a different structural and visual solution for applications requiring a metal panel construction. An aluminum panel combined with an MDF board has a higher material cost than some standard configurations, so this option should be selected when its characteristics are relevant to the project.
Leather panels can be considered when appearance and a more premium presentation are important, while melamine panels provide another option for specific appearance and surface requirements.
The correct panel is therefore determined by the application rather than by price alone.
5. Design the Internal Structure Around How the Case Will Be Used
The internal structure should reflect not only what the case stores, but also how the user will access, organize, and transport its contents.
A single piece of equipment may require a custom foam insert, while a case containing multiple tools or components may benefit from partitions or separate compartments.
More complex requirements can include:
- Multi-layer structures
- Drawers
- Removable structures
- Special opening and closing mechanisms
A multi-layer structure can make better use of vertical space when several items need to be stored separately. Drawers can improve access to smaller tools or components without requiring users to remove everything from the case. Removable structures can provide greater flexibility when the contents or configuration may change over time.
Special opening and closing mechanisms may also be required for cases with unusual access requirements.
However, every additional structural feature introduces more components and manufacturing processes. Buyers should therefore determine whether a special structure provides a practical benefit before adding it to the design.
6. Consider Hardware, Handling and Transportation Together
Hardware should be selected according to the case's weight, frequency of use, transportation conditions, and security requirements.
Locks, handles, hinges, wheels, and corner protectors all contribute to the case's usability and durability. Standard hardware is suitable for many applications, while upgraded or customized hardware can provide higher quality or specific functionality at a higher cost.
For example, a heavier equipment case may require a more robust handle. A case that is frequently moved may benefit from wheels, while a case that needs to remain securely closed during transportation may require an appropriate locking solution.
Lid support hinges can also be useful when the lid needs to remain open during operation or loading. Corner protectors provide additional protection to vulnerable edges and corners during handling.
Transportation should be considered at the design stage rather than after the case has been manufactured. A case intended for frequent international transportation may have different requirements from one that is primarily used for indoor storage. Packaging, case structure, hardware, and internal protection should work together as a complete system.
A Practical Checklist Before Finalizing Your Design
Before approving a custom aluminum case, B2B buyers should confirm six essential areas:
- Equipment: Have the complete equipment dimensions and weight been provided?
- Protection: Is the foam appropriate for the equipment and transportation conditions?
- Frame: Is the aluminum frame suitable for the required structural performance?
- Panel: Does the panel material match the application's durability, appearance, and weight requirements?
- Internal structure: Are partitions, drawers, layers, or removable components actually necessary?
- Hardware and transportation: Are the locks, handles, hinges, wheels, corners, and packaging suitable for the expected handling conditions?
Providing these details at the beginning of a project can reduce design revisions and make the quotation and sampling process more efficient.
Designing a Case Around Your Application
Lucky Case is a China-based custom aluminum case manufacturer with experience in OEM and ODM case production. We provide customized solutions covering aluminum frame profiles, panel materials, internal structures, protective foam, hardware, branding, and packaging.
Our factory-based production capabilities allow us to support projects ranging from standard storage cases to cases with customized foam inserts, multi-layer structures, drawers, removable components, and other special requirements. We also work with customers to develop case configurations around their equipment dimensions and application requirements.
If you are planning a custom aluminum case project and are unsure which frame, panel, foam, internal structure, or hardware configuration is right for your application, please feel free to contact Lucky Case.
