Dividers help organize tools, instruments, electronic components, and other items inside an aluminum case. A well-designed layout keeps products separated, improves accessibility, and makes better use of the available space. However, effective divider design requires more than dividing the interior into equal sections. Product dimensions, weight, fragility, removal clearance, and transportation conditions all influence the final layout.
For businesses developing a custom case, understanding these factors makes it easier to communicate requirements to an aluminum case company and create an interior that suits the intended application.
Why Divider Design Matters in an Aluminum Case
The main purpose of dividers is to give each item a defined storage position. Without suitable separation, products may shift during transportation, collide with adjacent items, or become difficult to locate.
A practical divider layout can provide several benefits:
- Organization: Assign dedicated compartments to individual products or accessories.
- Protection: Reduce direct contact between stored items.
- Accessibility: Make frequently used components easier to retrieve.
- Space efficiency: Arrange products according to their dimensions and quantities.
Dividers alone do not guarantee impact protection. Fragile or precision equipment may require additional foam cushioning, especially when the case will be transported frequently.
Start with the Products You Need to Store
Measure Dimensions and Weight
Begin by recording the length, width, and height of each item. Include protruding handles, connectors, cables, and accessories that affect the space required. For irregularly shaped products, photographs, drawings, or physical samples can help clarify the required compartment shape.
Weight also matters. Heavier items may require stronger supporting structures and a layout that prevents them from shifting under normal handling. Lightweight accessories may need smaller compartments to avoid becoming mixed together.
Remember to calculate the usable internal dimensions of the case rather than relying on its external measurements. The shell, lining, foam, and divider thickness all reduce the available space.
Consider How Users Access Each Item
A compartment should accommodate not only the stored item but also the movement needed to remove it. Tight-fitting sections can make retrieval difficult, particularly for equipment with handles, delicate surfaces, or attached cables.
Consider which items users need most frequently, whether products must be removed individually, and whether accessories should remain together. These practical requirements should guide the layout before divider dimensions are finalized.
For a broader overview of internal layouts, protection, and case construction, see our guide to designing a custom aluminum case.
Choose the Right Divider Structure
Fixed Dividers
Fixed dividers create permanent compartments and work well when products have consistent dimensions and the storage arrangement rarely changes. They provide a clearly defined layout and can help prevent items from moving between sections.
However, fixed structures are less adaptable when product configurations change. They are best suited to standardized kits, dedicated equipment sets, and applications with predictable storage requirements.

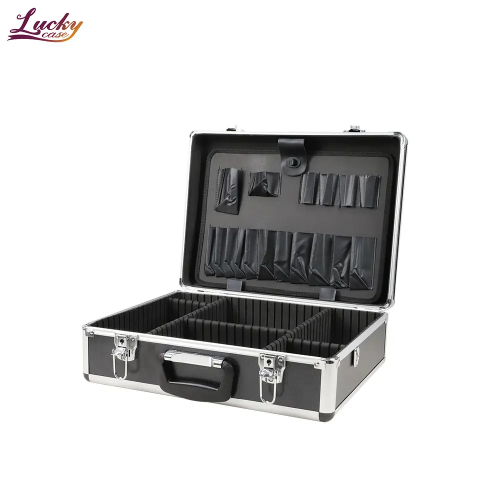

Adjustable or Removable Dividers
Adjustable dividers allow users to change compartment sizes as their storage needs evolve. Removable sections can also accommodate different product combinations without redesigning the entire interior.
This flexibility is useful for tool cases, sample kits, and equipment collections containing items of different sizes. The divider system must still remain stable during handling. Loose or poorly secured partitions can shift and reduce the protection the layout is intended to provide.
Multi-Layer Layouts and Removable Trays
For cases containing many components, a removable tray or multi-layer arrangement can separate frequently accessed items from equipment stored underneath. This approach can increase usable storage capacity without expanding the external dimensions.
However, designers should consider tray weight, lifting clearance, and access to the lower layer. A layout that fits everything on paper may be inconvenient if users cannot remove a tray safely or reach the items beneath it.
Select Suitable Divider Materials
Foam Dividers
Foam is useful when stored products require cushioning or separation from neighboring items. EVA foam is commonly selected for shaped inserts and a finished appearance, while polyethylene (PE) foam may suit applications requiring a different balance of firmness and cushioning.
Foam compartments can be cut to match specific product shapes, helping items remain positioned during transportation. The appropriate material and thickness depend on product weight, fragility, fit, and the required level of protection.
For precision equipment or delicate components, the insert design should account for contact points and areas that need additional support.

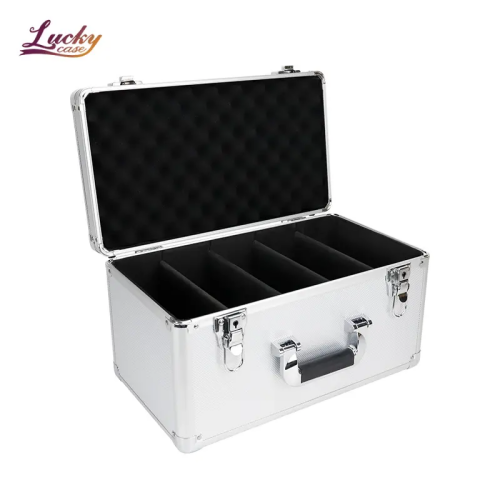

Rigid Panels and Fabric-Covered Dividers
Rigid partitions can create defined sections for tools, accessories, and products that do not require extensive cushioning. Fabric-covered dividers may be appropriate when appearance and surface contact are important considerations.
Material selection should reflect the application, expected handling, required compartment stability, and budget. It is also important to assess how the partitions will be attached to the case interior and whether they can withstand repeated use.
Balance Protection, Space, and Usability
Good divider design balances a secure fit with practical access. Compartments that are too large may allow items to move, while sections that are too tight can make products difficult to remove or place unnecessary pressure on delicate components.
Divider thickness must also be included in the layout calculations. Increasing the number of compartments may improve organization but reduce usable storage space. For cases containing mixed-size products, grouping items by size, weight, and frequency of use can help create a more efficient arrangement.
Before finalizing the design, review the complete layout with the actual products or accurate samples. Check whether each item fits, whether accessories have designated positions, and whether the contents can be packed and removed without disturbing neighboring items.
Working with an Aluminum Case Company on Custom Dividers
Custom divider projects are easier to evaluate when buyers provide clear specifications. Useful information includes product dimensions, quantities, photographs or samples, weight, fragility, intended use, and preferred compartment arrangements.
It is also helpful to identify which items require cushioning, which sections should be adjustable, and whether the case needs removable trays or multiple storage levels.
An experienced aluminum case company can use these requirements to assess the internal layout, divider materials, structural constraints, and manufacturing feasibility. Sample evaluation then allows the buyer to check fit, accessibility, and overall usability before approving bulk production.
If you are planning a tailored storage solution, explore our custom aluminum case solutions to learn more about customized case structures and interior configurations.
For a checklist of the information to prepare before requesting a quotation, read our guide to information needed for custom aluminum cases.
Conclusion
Designing dividers for an aluminum case requires careful consideration of product dimensions, compartment access, materials, protection, and available space. The right arrangement should keep items organized while making packing, retrieval, and transportation practical.
At Lucky Case, we support custom case development based on product dimensions, internal layout requirements, material preferences, and intended applications. By defining these requirements early and evaluating a sample before production, businesses can develop an aluminum case interior that better suits their products and workflow.
